Detectors

3.0 X 3.0 X 0.5 (mm X mm X mm) <br><br>Specifications

3.0 X 3.0 X 0.5 (mm X mm X mm)

Specifications

  • Length:3.0 mm
  • Width:3.0 mm
  • Thickness:0.5 mm
  • Crystallographic Orientation (Miscut):+/-3°
  • Crystallography:Typically 100% single sector {100}
  • Edges:Laser Cut
  • Edge Features:< 0.2 mm
  • Edge Orientation:<100> edges
  • Face Orientation:{100} faces
  • Lateral Tolerance:+0.2/-0 mm
  • Side 1, Roughness, Ra:Ra < 10 nm
  • Side 2, Roughness, Ra:Ra < 10 nm
  • Thickness Tolerance:+/- 0.1 mm
  • Nitrogen Concentration:(before treatment) 800 ppb

We understand that every project is unique, and we’re here to customize our products to meet your specific needs. Whether it’s size or technical specifications, we tailor our solutions to fit your requirements perfectly. Reach out us to discuss your needs and find the right solution. Inquiry Now

OVERVIEW OF DETECTORS

Overview

Overview

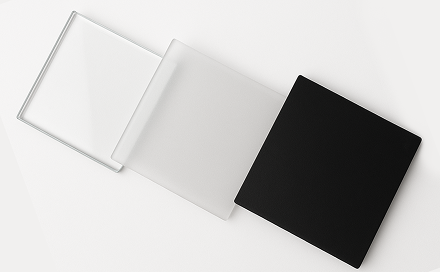

Our custom diamond detectors are designed for high-sensitivity applications in scientific research and industrial monitoring. The exceptional properties of diamond, including its radiation hardness and chemical stability, make it an ideal material for detectors that require precision and durability.

Key Use Cases

Radiation Detectors High-sensitivity detectors for measuring ionizing radiation with precision.
Particle Detectors Diamond-based detectors for tracking particles in high-energy physics experiments.
Environmental Monitoring Durable and reliable detectors for monitoring environmental conditions.

Key Benefits

  • High Sensitivity and Precision
  • Durability in Harsh Environments
  • Reliable and Long-Lasting Performance
