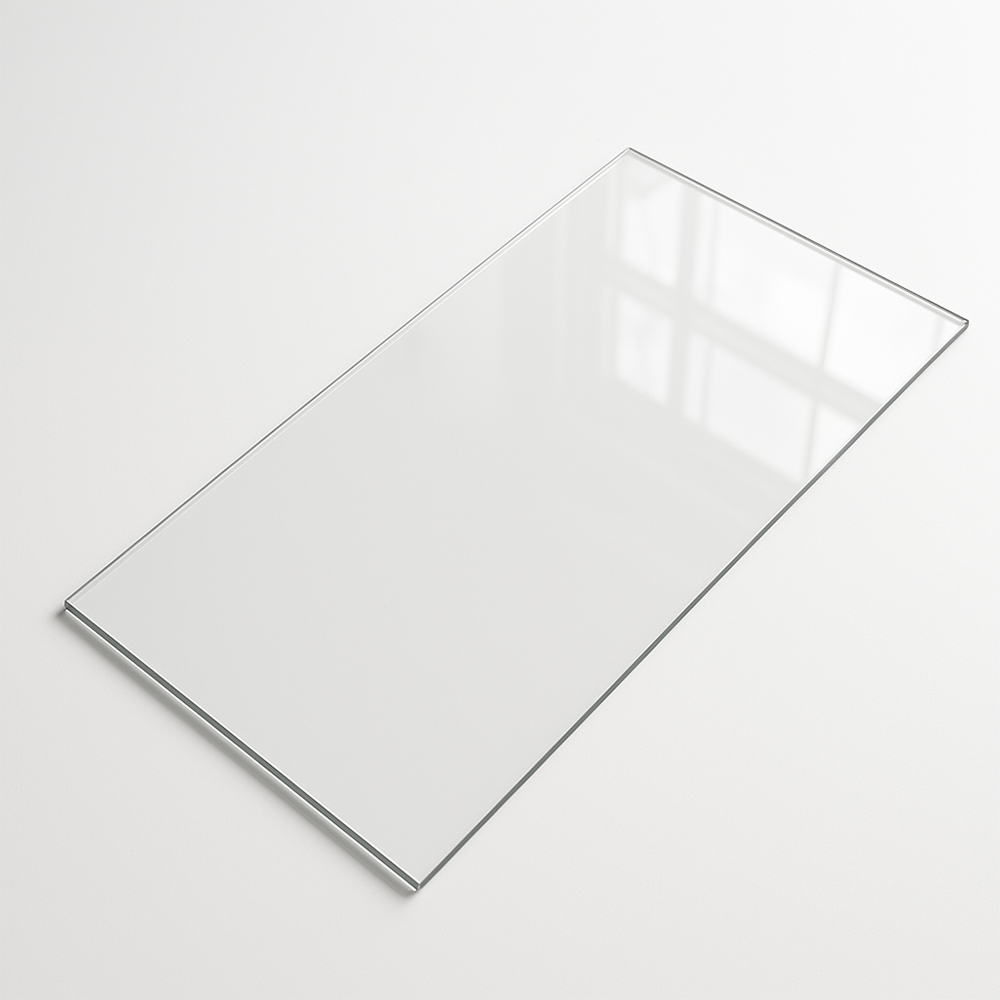

6.8 X 3.3 X 0.2 (mm X mm X mm)<br><br>Specification

6.8 X 3.3 X 0.2 (mm X mm X mm)

Specification

  • Length:6.8 mm <110>
  • Width:3.3 mm <100>
  • Thickness:0.2 mm
  • Crystallographic Orientation (Miscut):+/-3°
  • Crystallography:Typically 100% single sector {100}
  • Edges:Laser Cut
  • Edge Features:< 0.2 mm
  • Edge Orientation:<100> edges & <110>
  • Face Orientation:{110} faces
  • Laser Kerf:3°
  • Lateral Tolerance:+0.2/-0 mm
  • Side 1, Roughness, Ra:polished, Ra < 30 nm
  • Side 2, Roughness, Ra:polished, Ra < 30 nm
  • Thickness Tolerance:+0.01/-0.02 mm
  • Nitrogen Concentration:< 1 ppm

We understand that every project is unique, and we’re here to customize our products to meet your specific needs. Whether it’s size or technical specifications, we tailor our solutions to fit your requirements perfectly. Reach out us to discuss your needs and find the right solution.

OVERVIEW OF MECHANICAL TOOLING

Our custom diamond-based mechanical tooling solutions offer unmatched durability and precision for industrial applications. Diamond’s unparalleled hardness and wear resistance ensure long-lasting tools that maintain their edge even in the most challenging environments.

Key Use Cases

Cutting Tools Precision diamond tools for cutting hard materials with minimal wear.
Grinding and Polishing High-performance diamond tools for achieving smooth finishes on tough surfaces.
Machining Custom diamond tools designed for machining applications where accuracy and durability are critical.

Key Benefits

  • Superior Hardness and Wear Resistance
  • Enhanced Precision and Longevity
  • Cost-Effective and Reliable
